Business Entity Model Visualization

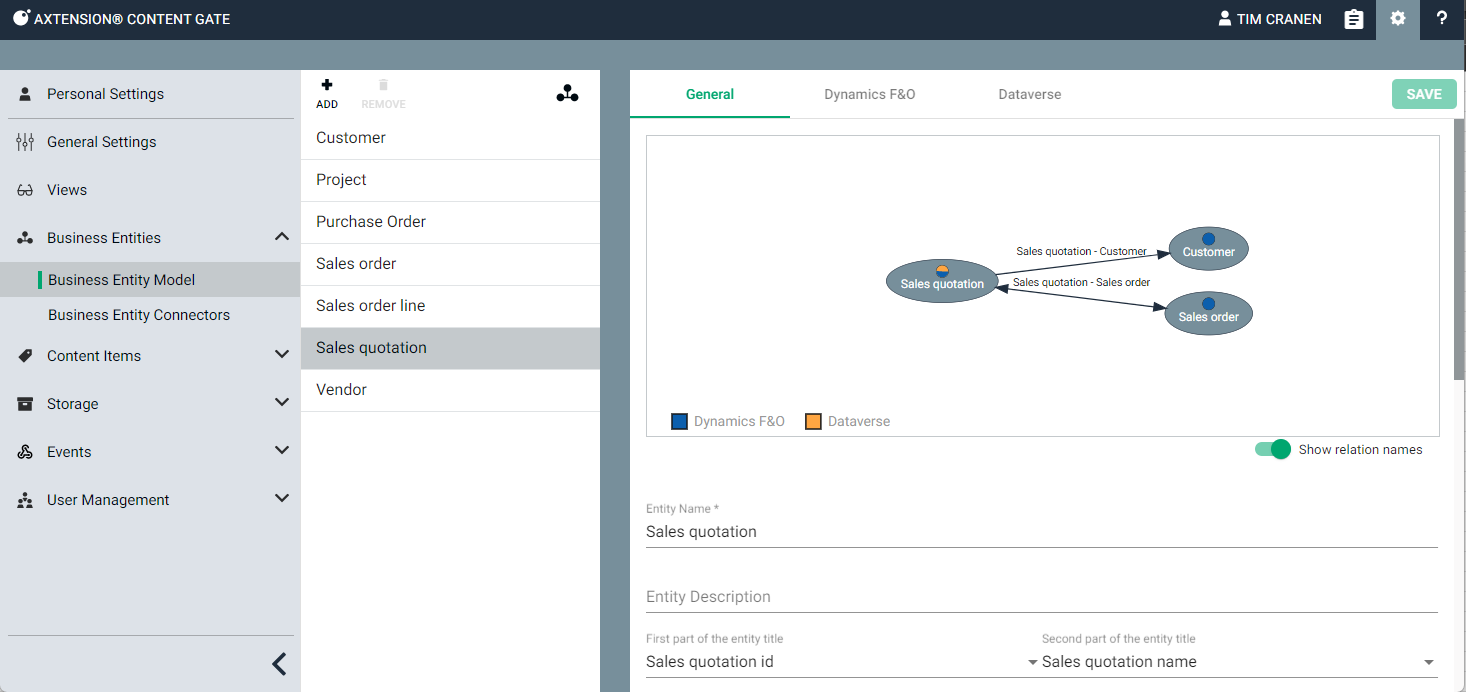

Users can view a visualization of the business entity types that are linked to the entity they are currently viewing in the general settings tab for the respective entity. In order to view a representation of the full business entity model, users can click the button on the top right corner of the visualization.

• Each ellipse represents a business entity type in the system.
• The color of a dot inside the ellipse represents which business entity connector is linked to the business entity type. If there is only one business entity connector configured, no dots are shown.
• The arrows between dots represent the links between business entity types, and their cardinality.
• The toggle "Show relation names" can be enabled to view the names of the relations between the entities.
